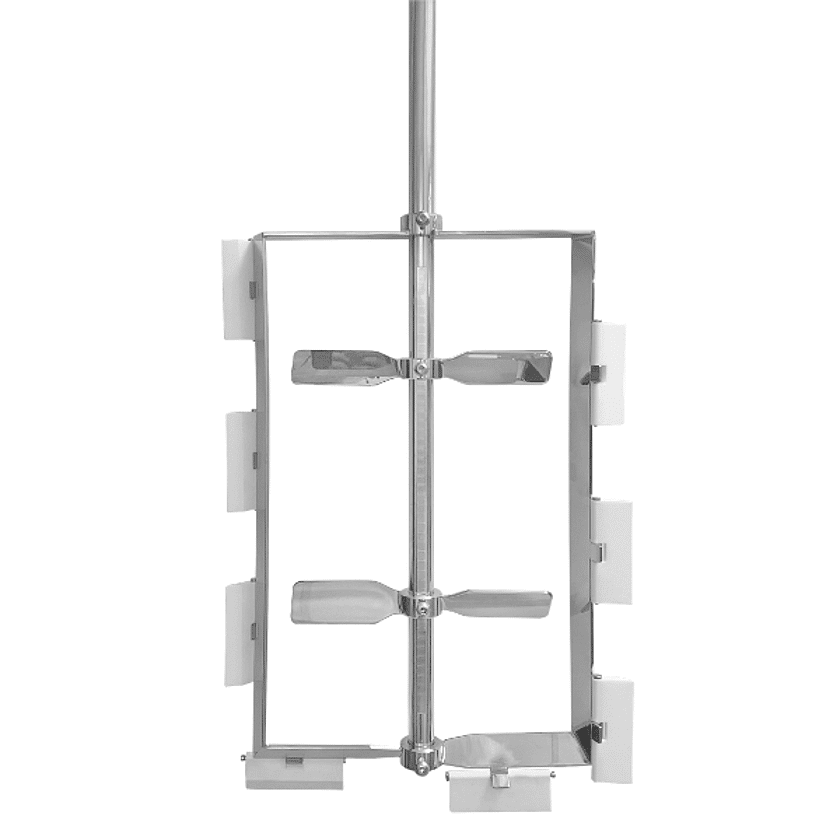

Gate Stirrer

Product details

• Key Features
  • Designed for slow, low shear stirring
  • Ideal for medium to high viscosity products (10,000–100,000 cP)
  • Close tolerance construction matched to vessel shape
  • Consistent mixing coverage across the vessel
  • Typical operating speeds: 50-100 rpm
  • Product contact components in 316 stainless-steel (and PTFE with scrapers)
  • 0.4 μm Ra finish, with ground welds for hygiene and ease of cleaning
• Match the Shape of Your Mixing Vessel
  Each stirrer is manufactured with close tolerances to precisely match the shape of your mixing vessel, ensuring full mixing coverage and efficient movement of viscous materials. Operating at typically 50-100 rpm, this low speed system provides effective agitation for viscosities between 10,000-100,000 cP.
• 316L Stainless Steel Surfaces
  Contact surfaces are built from 316L stainless steel, with optional PTFE components when wall scrapers are included. All product contact parts are fully polished to 0.4 μm Ra, with carefully ground welds for optimal cleanability and hygienic performance.
• Customisation Options
  Configure your Gate Stirrer to match your process:
  • Pivoted PTFE wall scrapers - clean vessel walls and improve heat transfer
  • Height adjustable central mixing blades
  • Motor options tailored to application requirements
  • Integration with a Pharma Hygiene Products mixing vessel system
• Engineered for High Viscosity Mixing
  The Gate Stirrer’s robust, low shear profile makes it ideal for maintaining product quality when working with high viscosity materials. From cosmetic creams to food pastes, the design ensures effective agitation without damaging texture or structure.
