Interchangeable Torque Ranges
The capping station supports multiple torque ranges by exchanging the slip clutch spring:
Fine adjustment within each range allows precise torque setting to meet specific application requirements.
| Specification | |
|---|---|
| Typical Product Output | Up to 16 per min |
| Machine Height | 1100 mm |
| Machine Width | 140 mm |
| Machine Depth | 220 mm |
| Standard Electrical Supply | 100 to 240VAC 50/60Hz |
| Typical Power Consumption | 60 watts |
| Torque Operating Ranges | 0.4-1.6 Nm 1-3 Nm |
The simple mechanical and electronic layout allows easy cleaning and routine inspection. Robust components and straightforward adjustment mechanisms support long-term reliability in laboratory and production environments.

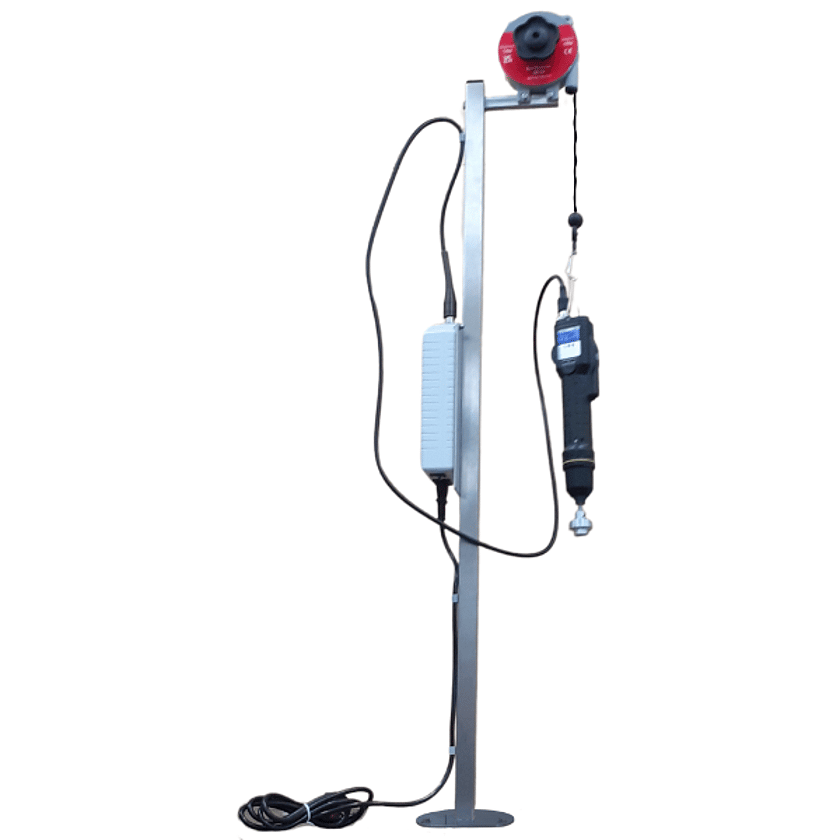

The Bench Mounted Capping Station is designed for precise, semi-automatic tightening of screw caps on bottles and containers. It is ideal for laboratories, pilot facilities, contract packers and small-batch production environments requiring consistent, repeatable sealing results.
It uses electronic torque control to ensure each cap is tightened to the same specification, providing tamper-evident integrity, product safety and professional-grade finish on every container.
This unit supports a wide variety of screw-type caps. With interchangeable torque heads, it easily adapts to different cap sizes and designs. Ideal for facilities handling multiple product formats.
Yes. Its interchangeable torque heads and adjustable setup make it suitable for a wide range of bottle and cap sizes, supporting versatility in small-batch production environments.
Yes. The 360° rotational range enables fast rundown of multiple fasteners per application, streamlining production and improving speed.
