| Specification | |
|---|---|
| Typical Product Output | Up to 500 per hour |
| Machine Height | 700 mm |
| Machine Width | 500 mm |
| Machine Length | 500 mm |
| Machine Weight | 15 kg |
| Compressed Air Supply Pressure | 6 Bar (10 Bar maximum) |
| Compressed Air Working Pressure | 6 Bar |
| Compress Air Consumption | 15 to 20 LT per minute free air |
| ATEX Zone Qualification | NOT QUALIFIED |
| Maximum Bottle Height | 320 mm |
| Cap Type | Screw Cap |
The robust mechanical and pneumatic design allows easy access for routine cleaning and inspection. High-quality materials support hygienic operation and long service life in pharmaceutical, cosmetic, food and chemical production environments.

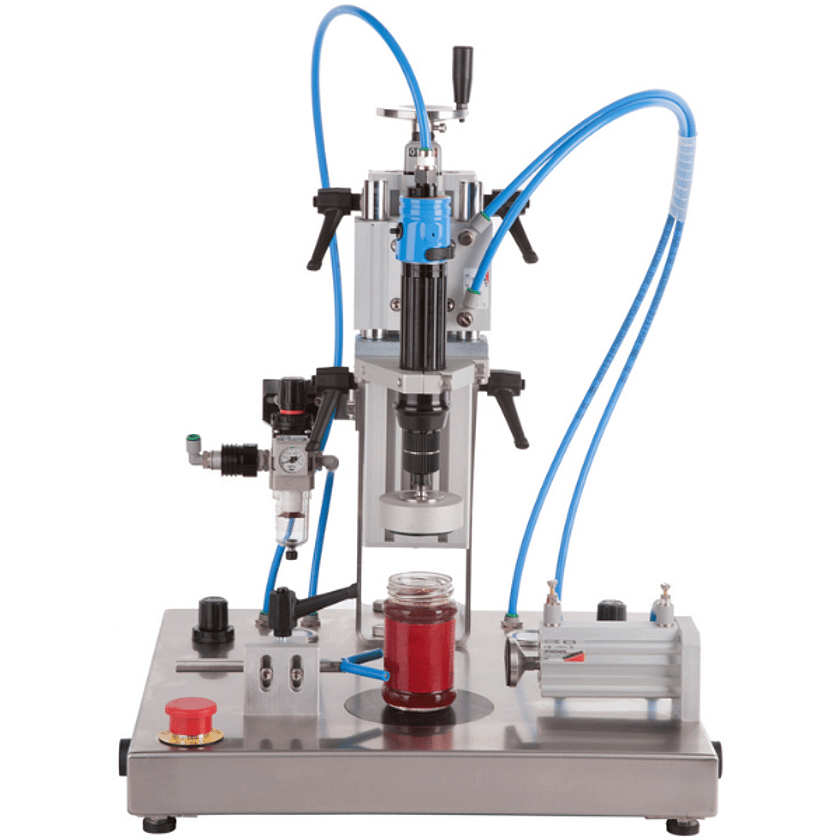

The Pneumatic Bottle Capping Machine is designed for semi-automatic sealing of twist-off caps on bottles and containers. It provides consistent torque, hygienic construction, and fast throughput. Which makes it ideal for pharmaceutical, cosmetic, food, beverage, chemical and lab environments.
This machine can cap up to 500 containers per hour, depending on operator speed, bottle size and workflow setup. Perfect for small to medium-scale production.
The machine is specifically designed for twist-off caps. With interchangeable cap chucks, it can handle a wide range of cap diameters used across multiple industries.
Yes. Torque can be precisely adjusted from 0.3 Nm to 4 Nm using a mechanical friction control system, ensuring secure, consistent capping without damaging caps or containers.
Yes. The machine features simple, tool-free cap chuck changeovers, allowing operators to switch between different cap sizes quickly, improving productivity and reducing downtime.
