Adelphi Group

Masterfil Automatic Flowmeter Filler

High-precision automatic flowmeter filler for fast, accurate and reliable liquid filling across a wide range of container sizes and product types.

Product details

  • Wide Fill Range
    Accurately fills containers from 50ml to 25L, making it ideal for bottles, jerrycans and drums.
  • High-Speed Output
    Handles up to 5,400 containers per hour for maximum line efficiency.
  • Exceptional Accuracy
    Filling precision up to ±0.2%, reducing waste and saving money.
  • Scalable Design
    Configurable with 2–12 filling heads, expandable as production increases.
  • Versatile Filling
    Adjustable nozzles for foaming and non-foaming liquids, with variable speed filling.
  • Quick Changeovers
    Minimal downtime between liquid or container changes.
  • Operator Friendly
    Store and recall multiple fill profiles for simple, de-skilled operation.
  • Waste Reducing Technology
    Built-in ‘no container, no fill’ sensing prevents spills and loss.
  • Durable & Hygienic
    Robust design with 316L stainless steel and PTFE contact parts.
  • ATEX-Compliant Options
    Available for flammable products.

Technical specifications

Specification
Typical Filling Accuracy ±0.15% to 0.2%
Fill Volume Range (Or Ranges) 50 ml - 25 L
Typical Product Output Up to 450 per hour per head
Machine Height 2.3 m
Machine Frame 1.2/1.6/2.4 m
Machine Length Dependent upon model
Machine Weight 1000 kg (approx)
Standard Electrical Supply 400VAC, 3PH + N + Earth 50/60 Hz
Compressed Air Working Pressure 6 bar (0.6 Mpa)
ATEX  Zone Qualification Possible up to Zone 1 IIB 2G T4

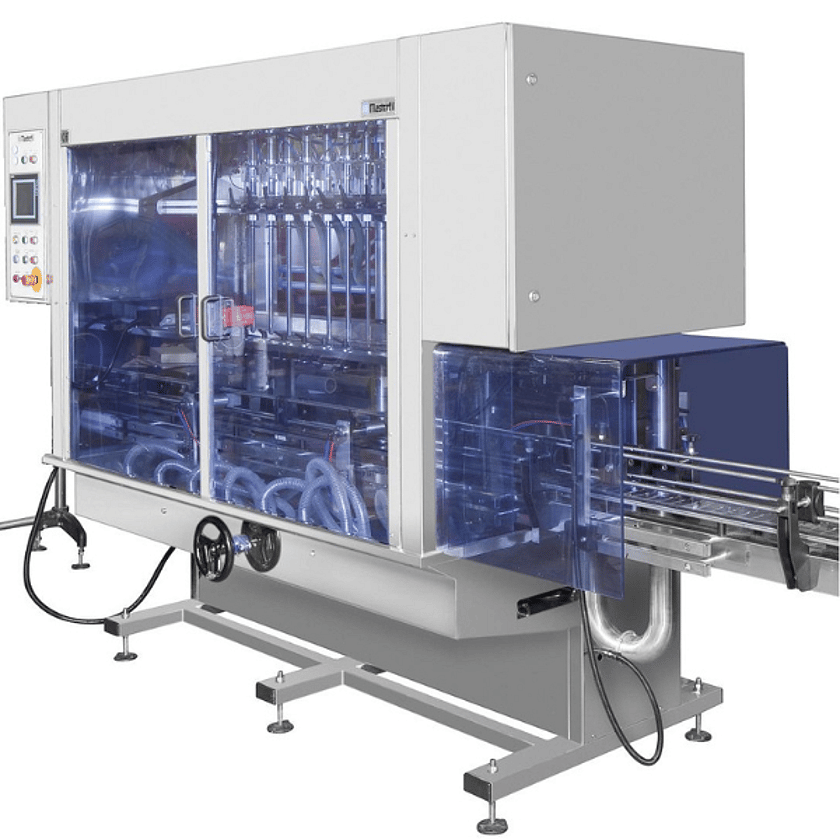

Adelphi Masterfil automatic flowmeter liquid filling machine with enclosed multi-head nozzle system, stainless steel conveyor, and precision dosing controls for high-accuracy container filling in food, pharmaceutical, and cosmetic production.
Adelphi Masterfil automatic liquid filling machine with multi-head nozzles, flowmeter dosing system, stainless steel conveyor, and integrated tubing, designed for precision container filling in food, pharmaceutical, and cosmetic production.

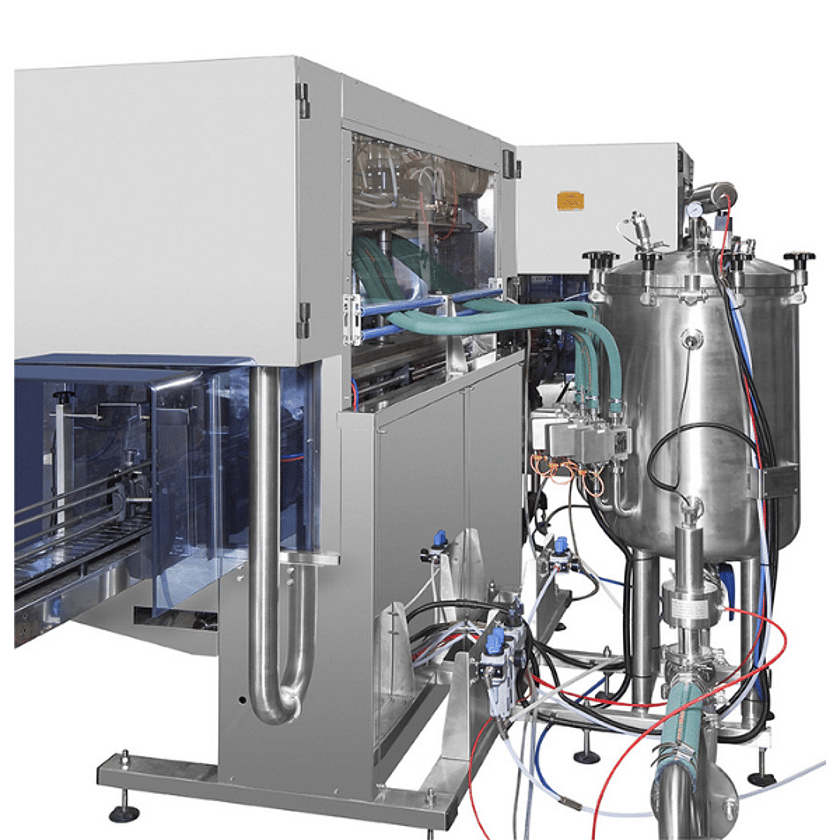

Adelphi Masterfil automatic liquid filling system with integrated stainless steel process vessel, pump-fed dosing unit, pipework, and conveyor line, designed for precision filling in food, pharmaceutical, and cosmetic production.

Service & Maintenance

Hygienic Parts: 316L stainless steel and PTFE contact surfaces

Maintenance: Daily flush through and visual inspections

Why Choose Adelphi

  • Proudly Trusted Worldwide Since 1947

    With decades of experience and installations in over 100 countries, Adelphi is a trusted name.

  • End-to-End Project Management

    From concept to delivery, Adelphi provides complete project oversight. Ensuring a seamless operation.

  • Custom Solutions for Every Industry

    Whether you’re filling pharmaceuticals, cosmetics or food products, our products can be tailored to you.

  • British Manufacturing Excellence

    Our equipment upholds the highest standards of quality, craftsmanship & engineering integrity.

FAQs

  • What is the Masterfil Automatic Flowmeter Filler used for?

    The Masterfil Automatic Flowmeter Filler is used for fast, accurate and repeatable filling of liquids into bottles, jerrycans, containers and drums ranging from 50 ml to 25 litres. It is ideal for industries requiring precision and high throughput, such as chemicals, cosmetics, pharmaceuticals, food, automotive and household products.

  • How does a flowmeter filler work?

    A Masterfil flowmeter filler uses a high-precision flowmeter to accurately measure the fluid flowing through each filling head. This allows for:

    • Precise volumetric or gravimetric filling.
    • Reduced product giveaway.
    • Accurate dosing even with varying viscosities and temperatures.
    • High repeatability across batches.

    Flowmeter technology is especially effective for medium-to-low viscosity liquids and products that benefit from smooth, controlled filling.

  • What filling accuracy does the machine achieve?

    The Masterfil Automatic Flowmeter Filler provides up to ±0.2% accuracy, reducing overfill, preventing product loss and improving overall yield.

  • Is the machine suitable for flammable liquids?

    Yes. ATEX-compliant versions are available for filling flammable or volatile products safely.

  • Does the machine help reduce waste?

    Yes. Waste-reducing features include:

    • High accuracy (±0.2%)
    • ‘No container, no fill’ detection
    • Smooth variable-speed filling to reduce splashing
    • Programmable nozzle control for foaming products

    These features significantly cut down on spills, rejects and overfills.
