Masterfil Automatic Volumetric Filler

The Masterfil Automatic Volumetric Filler is a reliable liquid filling machine designed to deliver fast, accurate and consistent results across a wide range of container sizes and product types..

Product details

  • Wide Fill Range
    Accurately fills containers from 50ml to 25L, making it ideal for bottles, jerrycans and drums.
  • High-Speed Output
    Handles up to 5,400 containers per hour for maximum production efficiency.
  • Exceptional Accuracy
    Precise filling with up to ±0.2% on our standard machines and ±0.15 on SERVO machines tolerance, reducing product waste by up to 30%.
  • Scalable Design
    Choose from 2 to 12 filling heads, with the option to add more as production grows.
  • Versatile Filling
    Handles low to high viscosity liquids with programmable nozzles that dive, rise or fill to or above the neck.
  • Operator Friendly
    Store and recall multiple fill profiles for quick product changeovers and simplified operation.
  • Waste Reducing Technology
    Built in ‘no container, no fill’ sensing prevents spills and unnecessary loss.
  • Durable & Hygienic Build
    Manufactured with 316L stainless steel and PTFE contact parts, designed for long life and easy cleaning.
  • Built for Industry
    Reliable even in harsh production environments; ATEX-compliant versions available for flammable products.

Technical specifications

Specification
Typical Filling Accuracy ±0.15% to 0.2%
Fill Volume Range (Or Ranges) 50 ml - 25 L
Typical Product Output Up to 450 per hour per head
Machine Height 2.3 m
Machine Frame 1.2/1.6/2.4 m
Machine Length Dependent upon model
Standard Electrical Supply 400VAC, 3PH + N + Earth 50/60 Hz
Compressed Air Working Pressure 6 bar (0.6 Mpa)
ATEX  Zone Qualification Possible up to Zone 1 IIB 2G T4

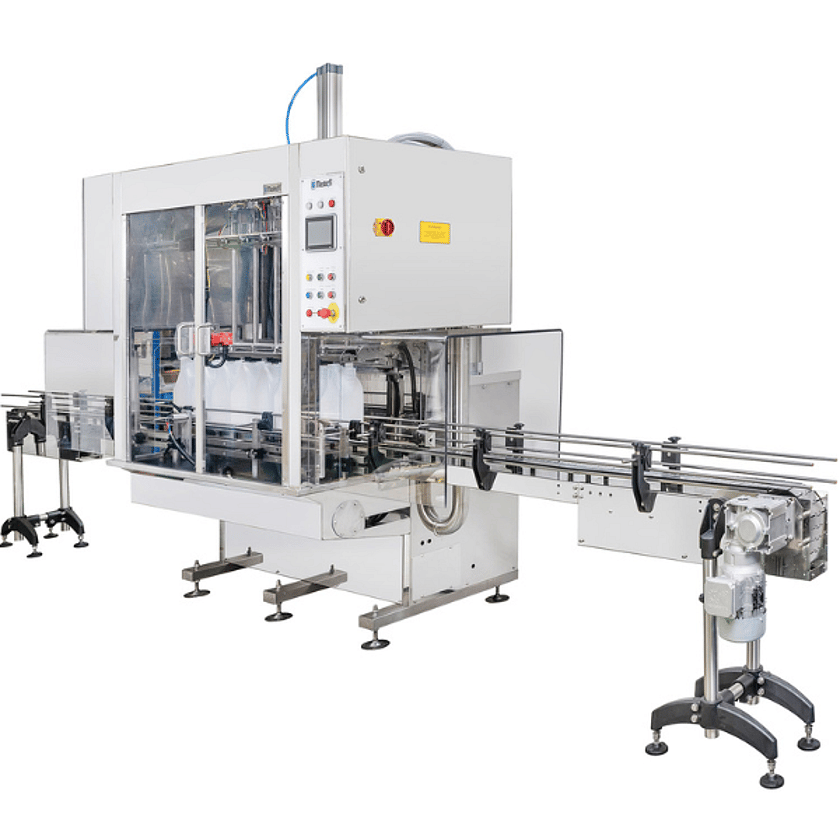

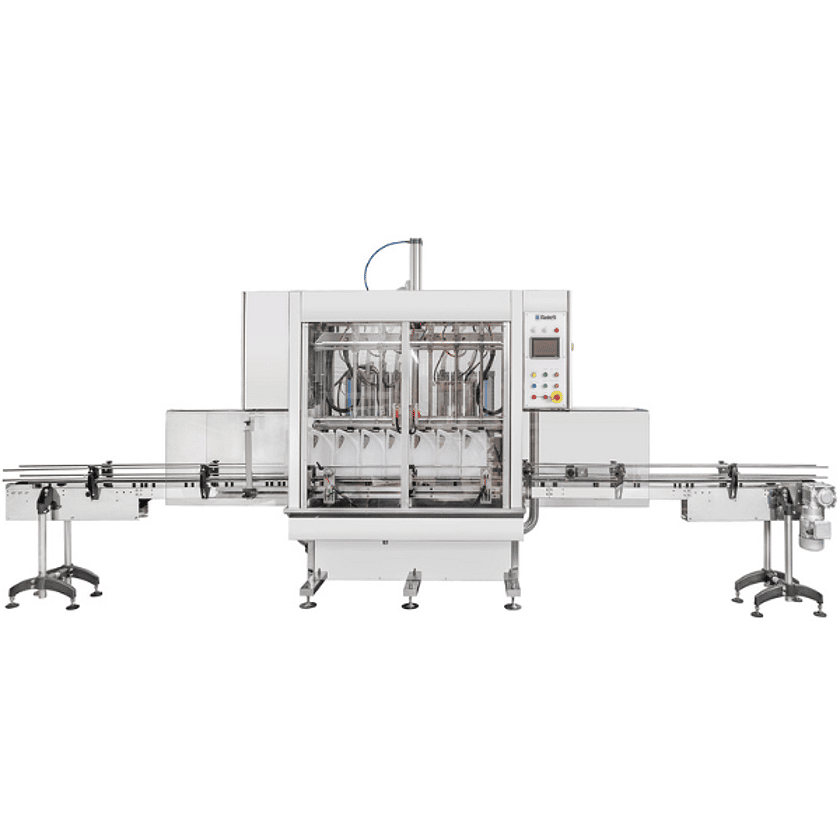

Front view of enclosed automatic liquid filling machine with stainless steel conveyor and multi-head dosing system for precision production lines.
Enclosed automatic liquid filling machine with stainless steel conveyor and multi-head dosing system for precise container filling lines.

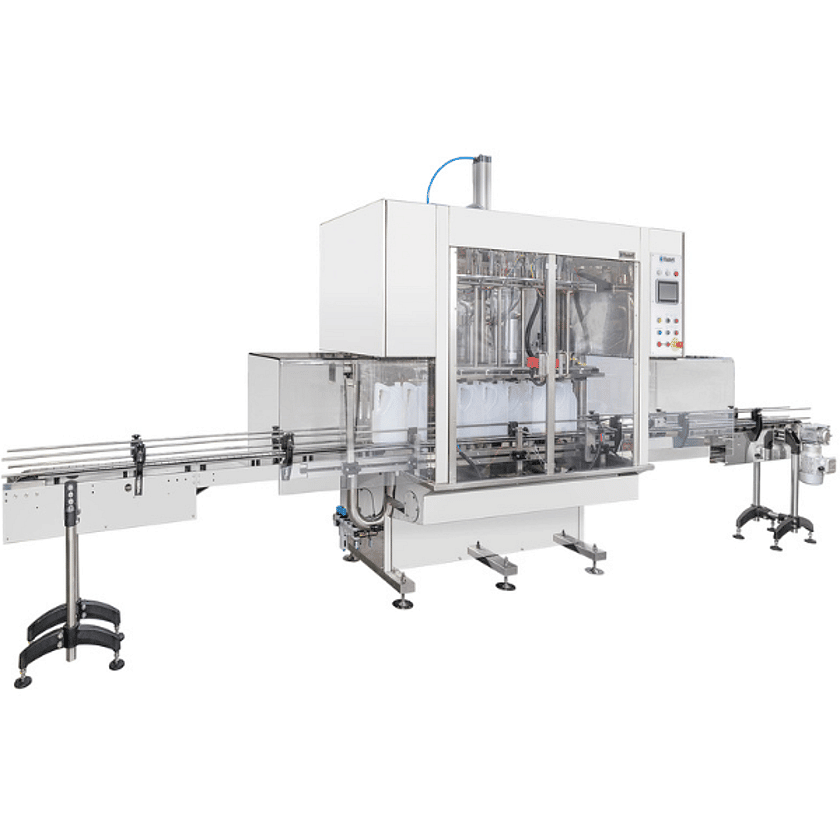

Automatic liquid filling machine with enclosed dosing system and extended stainless steel conveyor for high-speed container filling lines.
Multi-head liquid filling machine with vertical cylinders, stainless steel frame, and dosing system for precise high-speed container filling lines.

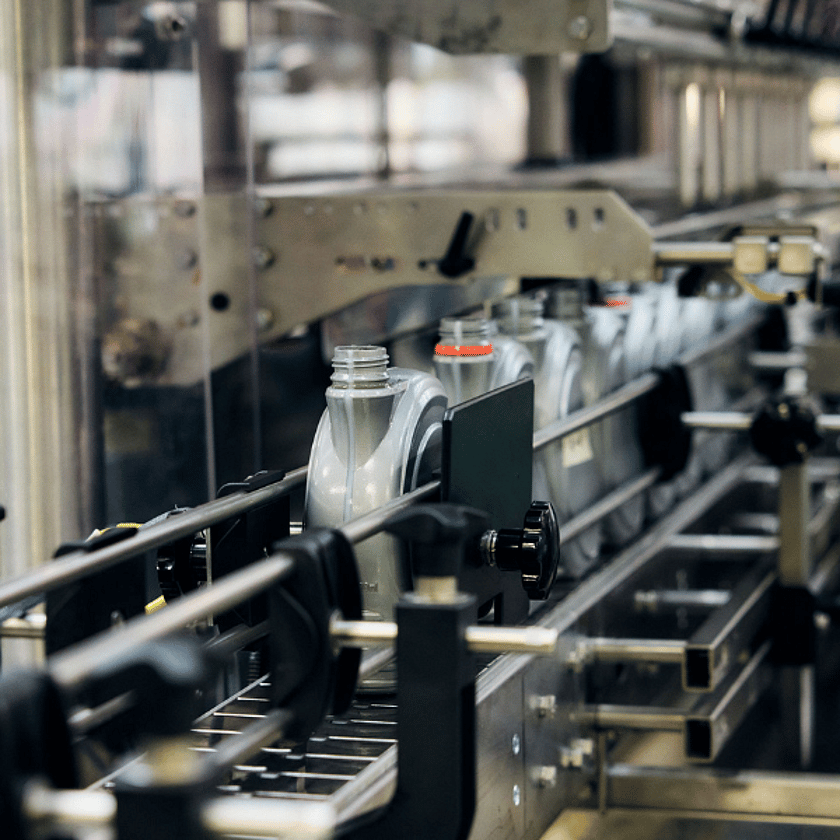

Automated filling line with bottles on stainless steel conveyor, passing through precision dosing station for liquid filling, capping, and labelling.

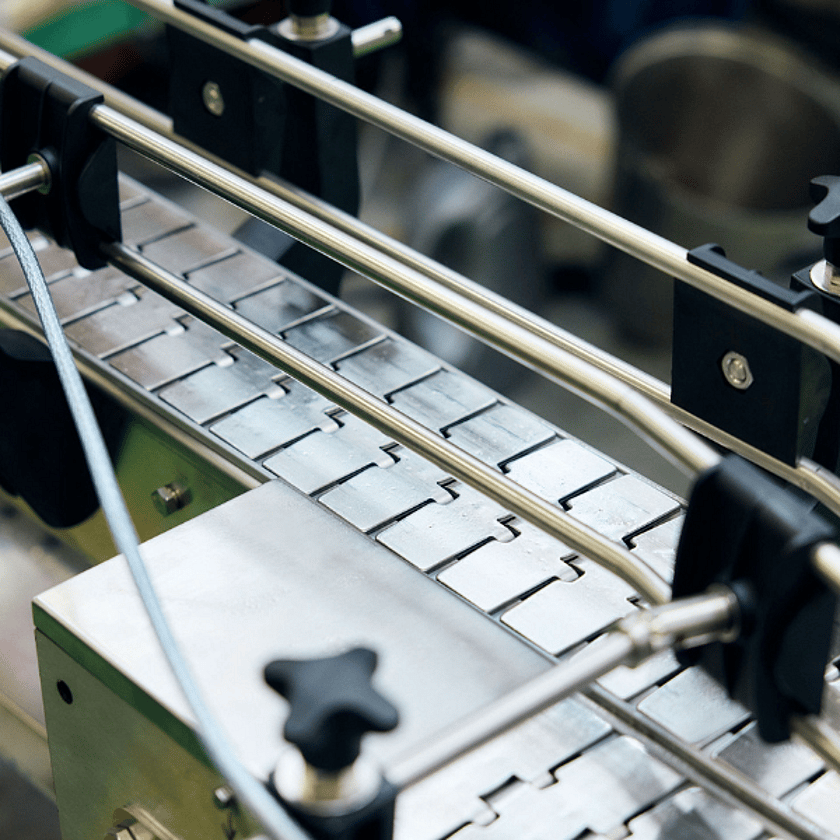

Stainless steel conveyor system with adjustable guide rails and automated container indexing track, designed for precise bottle positioning in filling, capping, and labelling production lines.

Service & Maintenance

Hygienic Parts: 316L stainless steel and PTFE contact surfaces

Maintenance: Daily flush through and visual inspections

Why Choose Adelphi

  • Proudly Trusted Worldwide Since 1947

    With decades of experience and installations in over 100 countries, Adelphi is a trusted name.

  • End-to-End Project Management

    From concept to delivery, Adelphi provides complete project oversight. Ensuring a seamless operation.

  • Custom Solutions for Every Industry

    Whether you’re filling pharmaceuticals, cosmetics or food products, our products can be tailored to you.

  • British Manufacturing Excellence

    Our equipment upholds the highest standards of quality, craftsmanship & engineering integrity.

FAQs

  • What is the Masterfil Automatic Volumetric Filler used for?

    The Masterfil Automatic Volumetric Filler is used for fast, accurate and repeatable filling of liquids into bottles, jerrycans, containers and drums from 50 ml to 25 litres. It is suitable for industrial, pharmaceutical, cosmetic, chemical, food and household product manufacturing.

  • What types of liquids can the Masterfil Volumetric Filler handle?

    The machine is designed for low, medium and high-viscosity products, including:

    • Water-like liquids
    • Oils
    • Detergents
    • Creams and gels
    • Chemicals and solvents
    • Food-grade products
    • Specialist industrial formulations
    • Lubricants

    Programmable nozzle options (dive, rise, neck filling and above-neck filling) provide maximum versatility.

  • What filling speeds can the machine achieve?

    The Masterfil can fill up to 5,400 containers per hour, depending on container size, fill volume and number of filling heads.

  • How many filling heads can the machine be configured with?

    It can be supplied with 2 to 12 filling heads, with the ability to add more later as production demand increases, ideal for scaling operations.

  • Does the Masterfil Automatic Volumetric Filler handle harsh production environments?

    Yes. It is specifically engineered for:

    • Heavy-duty industrial use
    • High-demand production shifts
    • Environments requiring robust, hygienic equipment

     Its stainless steel build ensures long-term reliability.

Related case studies

Go to case studies
  • A selection of Zep UK Ltd products, spray bottles, aerosols and jelly can on a bright colourful background

    Zep UK Ltd

    “I have used Adelphi Masterfil machines in previous employment and knew what the machines would be capable of. I also had a good working relationship with Andy, and I knew he would understand what I was after!” Keep reading

Browse related products

View all products
  • Adelphi Masterfil automatic flowmeter liquid filling machine with enclosed multi-head nozzle system, stainless steel conveyor, and precision dosing controls for high-accuracy container filling in food, pharmaceutical, and cosmetic production.

    Masterfil Automatic Flowmeter Filler

    High-precision automatic flowmeter filler for fast, accurate and reliable liquid filling across a wide range of container sizes and product types. See product

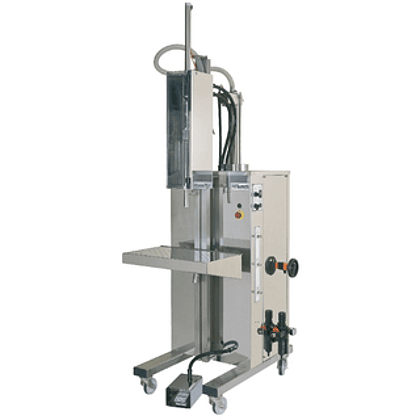

  • Semi-automatic liquid filling machine with piston dosing system and stainless steel frame for precise container filling in production lines.

    Masterfil Semi Automatic Volumetric Filler

    Versatile semi-automatic liquid filling machine for precise, reliable, and efficient filling of containers from 250ml to 5L, with multi-shot options up to 30L. See product

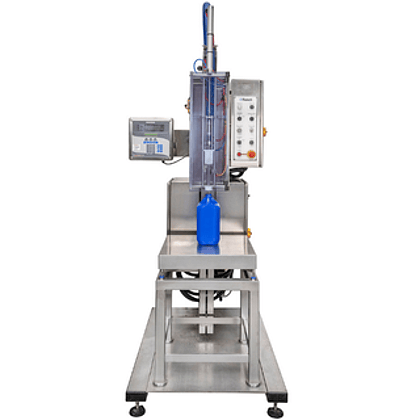

  • Front view of benchtop liquid filling machine with vertical dosing cylinder, stainless steel frame, and single nozzle for precise container filling.

    Masterfil Bench Height Weigh Scale Filler

    Precision bench height weigh scale filler for accurate, efficient liquid filling from 1kg to 60kg, designed for foaming and non-foaming products. See product

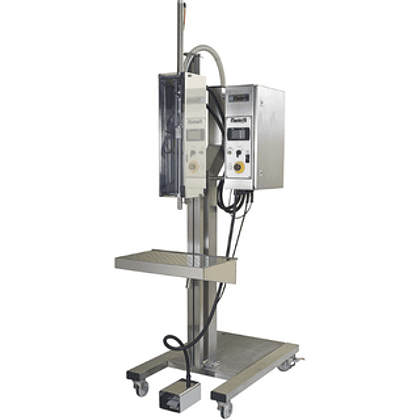

  • Mobile liquid filling machine with touchscreen control panel, pump-fed nozzle, and stainless steel worktable for precise container filling in production lines.

    Masterfil Semi Automatic Flowmeter Filler

    Reliable semi-automatic flowmeter filler for precise, fast, and versatile liquid filling from 250ml to 30L, suitable for foaming and non-foaming products. See product

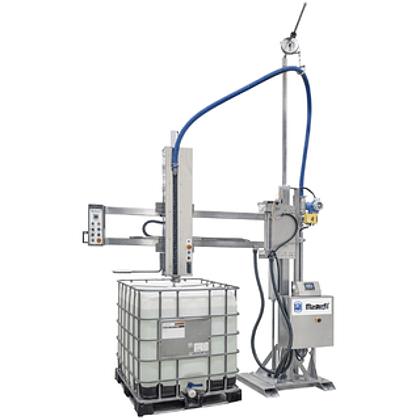

  • IBC filling system with pump-fed dispensing unit and hose, designed for precise liquid dosing into intermediate bulk containers in production environments.

    Masterfil Semi-Automatic Flowmeter Boom Filler

    Heavy-duty liquid filling solution for drums, IBCs, and large containers, with swing-arm design for accuracy, safety, and operator comfort. See product

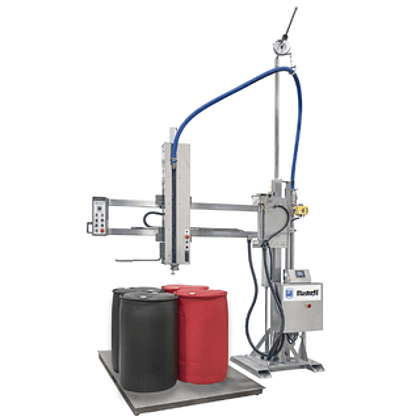

  • Semi-automatic weigh scale filling system with boom arm and pump-fed nozzle for accurate liquid dosing into drums in industrial production lines.
