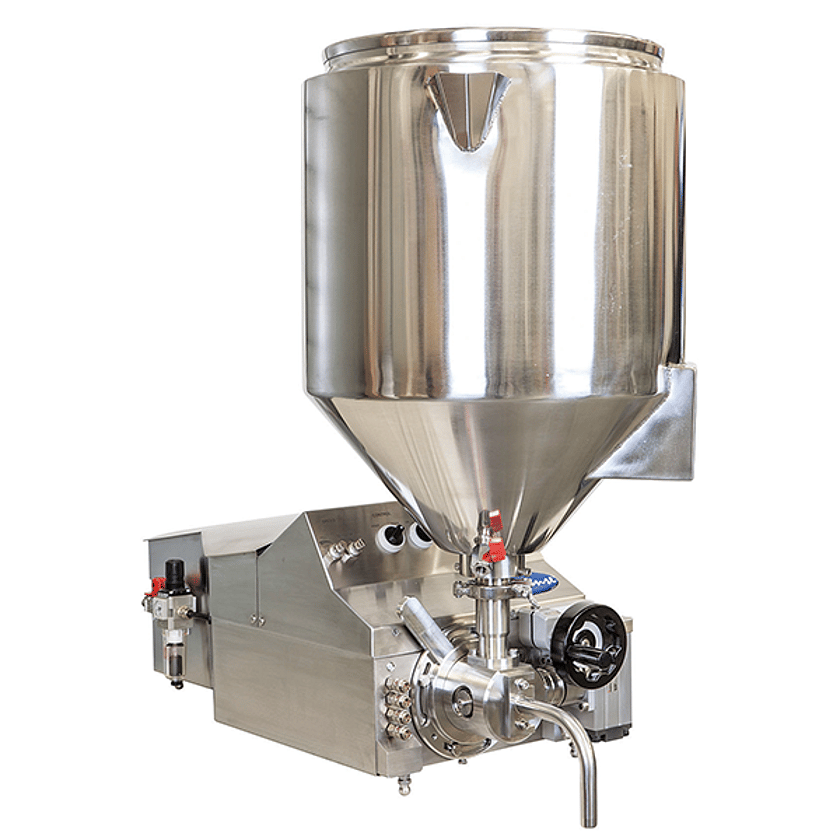

Response Heated Benchtop Filler

A versatile benchtop filling solution with an integrated heated hopper, designed for products that must be filled warm to maintain flow, consistency and accuracy.

Product details

  • Designed for Warm & Temperature-Sensitive Products
    This system is specifically engineered for warm-fill and temperature-sensitive applications, featuring an integrated heated hopper that maintains consistent product temperature throughout the entire filling cycle.
  • Fast, Precise & Versatile
    Deliver consistent, repeatable fills at high accuracy, helping reduce product waste and improve process efficiency across small-batch and laboratory production environments.
  • Wide Filling Range
    The Response Benchtop Filler is supplied with four standard interchangeable pump sets, allowing accurate filling across a broad volume range to suit different container sizes and product types. Pump cylinders feature an electropolished finish for improved hygiene and cleanability.
  • Flexible Product Feed Options
    Liquid products can be drawn directly from bulk containers via a suction hose and non-return valve. Thicker products, creams and pastes are fed from a  hopper system, with multiple hopper sizes available to suit production requirements.

Technical specifications

Specification Single Head Double Head
Typical Product OutputUp to 40 per minUp to 60 per min
Fill Volume Range5ml - 1L5ml - 100ml
Machine Height without hopper340 mm 340 mm
Machine Width343 mm343 mm
Machine Weight41 kg44 kg
Compress Air Consumption5L at 6 bar5L at 6 bar

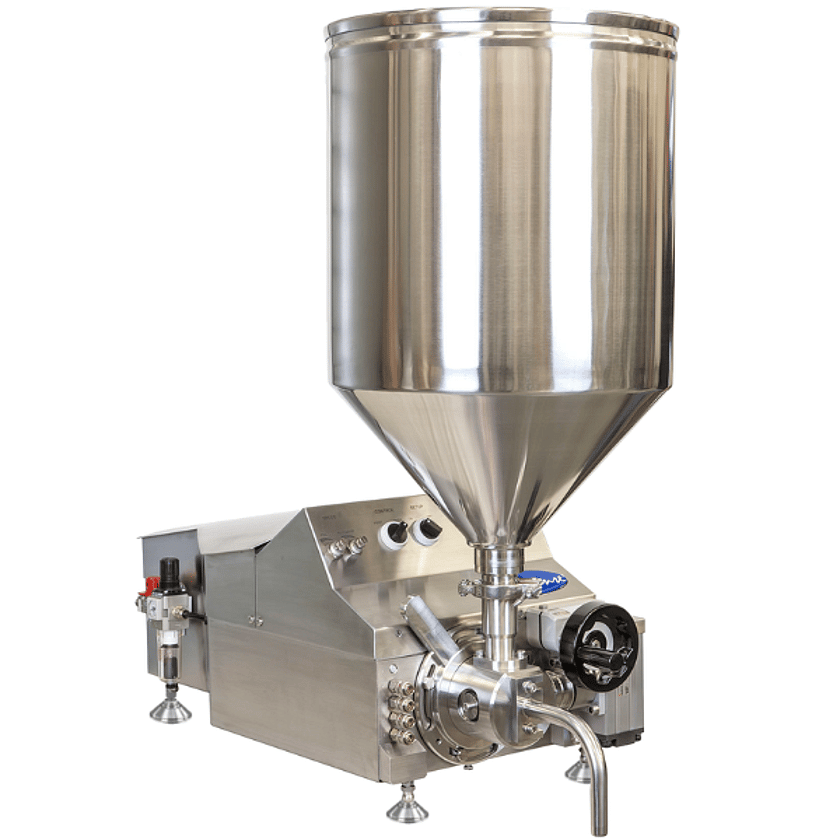

Response Heated Front On with Hopper 600 x 600

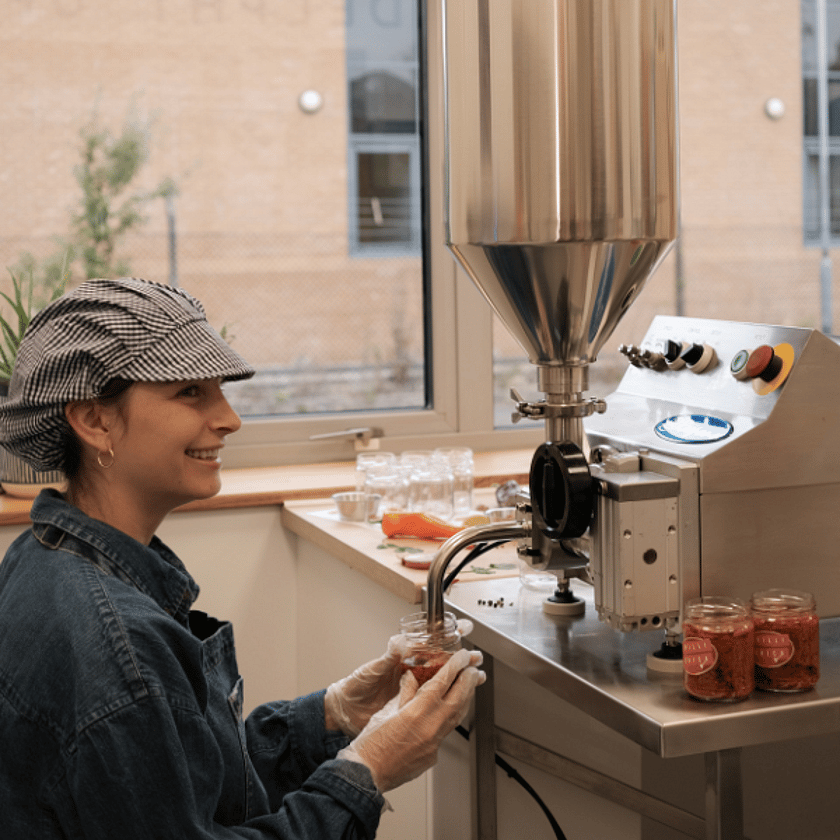

Person Filling Chilli Jam Side On 600x600

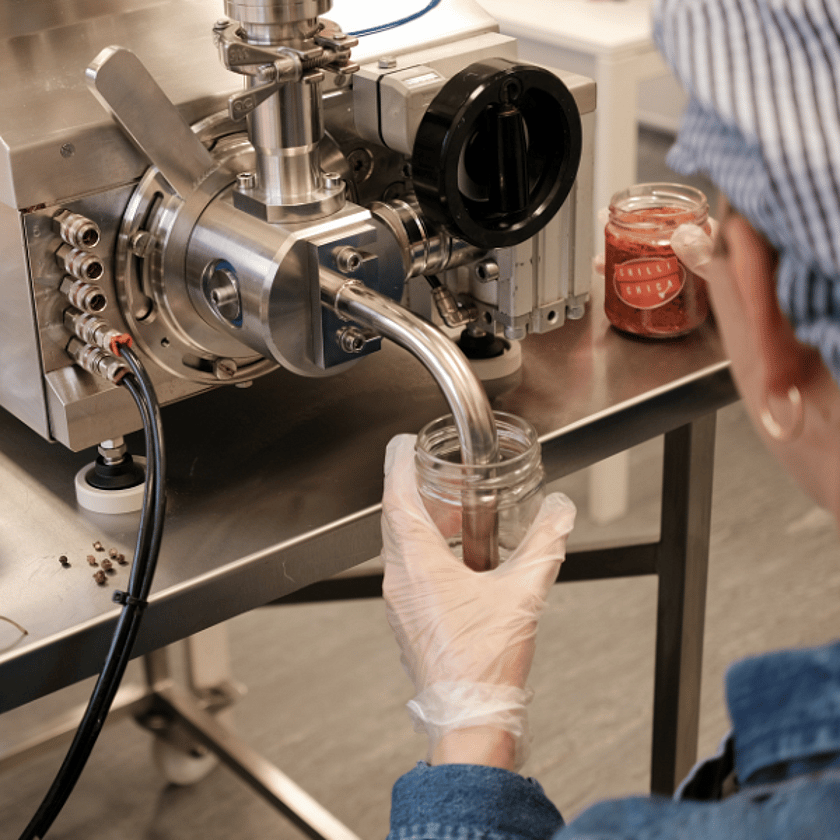

Person Filling Chilli Jam Birdseye View 600x600

Service & Maintenance

Hygienic, Pharmaceutical-Grade Construction

All product contact parts are manufactured from 316L stainless steel and virgin PTFE, with FDA-compliant materials used throughout. Standard sealing materials include FKM (Viton), with alternative seal options such as EPDM, silicone and FFKM available to suit specific product requirements.

Food-grade PVC suction hoses are used where applicable, and the machine’s quick-strip design allows fast, thorough cleaning to support strict hygiene protocols and minimise production downtime.

Why Choose Adelphi

  • Proudly Trusted Worldwide Since 1947

    With decades of experience and installations in over 100 countries, Adelphi is a trusted name.

  • End-to-End Project Management

    From concept to delivery, Adelphi provides complete project oversight. Ensuring a seamless operation.

  • Custom Solutions for Every Industry

    Whether you’re filling pharmaceuticals, cosmetics or food products, our products can be tailored to you.

  • British Manufacturing Excellence

    Our equipment upholds the highest standards of quality, craftsmanship & engineering integrity.

FAQ's

  • What is the Response Heated Benchtop Filler used for?

    The Response Heated Benchtop Filler is designed for warm-fill and temperature-sensitive products that must be heated to maintain flow, consistency, and accurate dosing. It is ideal for filling viscous or solidifying products in laboratory, pilot-scale, and small-batch production environments.

    Ask the Expert: How to Maintain Your Response Benchtop Filler

  • Does the heated version differ from the standard Response Benchtop Filler?

    The heated model is built on the same proven Response Benchtop platform, incorporating all standard features such as precision filling, quick-strip cleaning and compact design with the added benefit of a controlled heated hopper for warm-fill applications.

  • What filling volumes are supported?

    The machine is supplied with four standard interchangeable pump sets, enabling accurate filling across a wide range of volumes to suit different container sizes and product types.

  • Is the Response Heated Benchtop Filler scalable or upgradeable?

    Yes. The system is designed to grow with your production, offering options such as:

    • One or two filling heads
    • Integration of up to four benchtop fillers on the Response Automation Base
    • Addition of capping via the Response Monobloc Filler/Capper
    • Automation into larger systems, including form-fill-seal machines

  • What nozzle options are available?

    A comprehensive range of interchangeable nozzles ensures clean, controlled filling across varying viscosities, including:

    • Swage tip nozzles
    • Cut-off nozzles with tip sealing
    • Full-bore cut-off nozzles in multiple sizes

    These options help minimise dripping and ensure clean shut-off.
