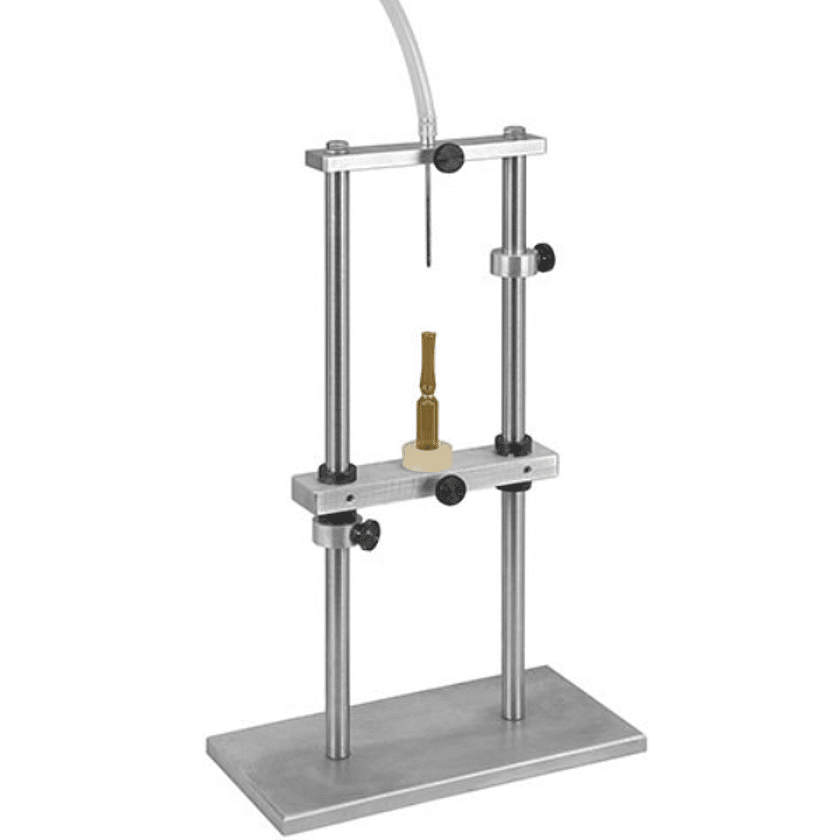

Ampoule Filling Jig

Precision-engineered ampoule filling jig for accurate, contamination-free liquid dosing in pharmaceutical and laboratory applications.

Product details

Clean & Controlled Ampoule Filling
The Ampoule Filling Jig enables precise, hygienic filling of ampoules by accurately positioning each ampoule beneath the filling needle without internal contact. This prevents product wetting on the glass sealing area and eliminates the risk of glass scraping or contamination, ensuring a clean fill.
Compatible with Multiple Fillers
The jig can be used in conjunction with Adelphi peristaltic pumps or other suitable liquid filling systems, offering flexibility for laboratory and small-scale pharmaceutical production environments.
Precision Filling Needle Design
Filling needles are manufactured from 316L stainless steel and selected to match the internal neck dimensions of the ampoule and the silicone tubing supplying the product. This ensures smooth, controlled filling without needle-to-glass contact.
Simple, Intuitive Operation
Designed for ease of use, the operator places the ampoule into a custom-made holder and manually raises it to an adjustable stop. This automatically centres the ampoule around the filling needle, allowing the product to be dispensed cleanly before lowering the ampoule after filling.
Durable, Hygienic Construction
Manufactured from high-quality stainless steel and aluminium alloy, the Ampoule Filling Jig offers long-term durability, easy cleaning and full compliance with pharmaceutical hygiene standards.
Compact, Space-Saving Design
With a compact footprint, the jig fits easily into laboratory workspaces or small-scale ampoule production areas, making it ideal for R&D, pilot production and low-volume manufacturing.

Technical specifications

Specification
Machine Weight	2.8 kg
Overall Size	210 × 105 × 345 mm

Service & Maintenance

Easy Cleaning

No product contamination on the ampoule neck.

Why Choose Adelphi

Proudly Trusted Worldwide Since 1947
With decades of experience and installations in over 100 countries, Adelphi is a trusted name.
End-to-End Project Management
From concept to delivery, Adelphi provides complete project oversight. Ensuring a seamless operation.
Custom Solutions for Every Industry
Whether you’re filling pharmaceuticals, cosmetics or food products, our products can be tailored to you.
British Manufacturing Excellence
Our equipment upholds the highest standards of quality, craftsmanship & engineering integrity.

FAQ's

What is the Ampoule Filling Jig?

The Ampoule Filling Jig is a precision-engineered tool designed for clean, accurate filling of glass ampoules in pharmaceutical, cosmetic and laboratory environments. It ensures contamination-free filling and a perfect seal area on every ampoule.
Ask the Expert: Ampoule Processing
How does the Ampoule Filling Jig work?

The operator places an ampoule into a custom-made holder and manually lifts it to a predetermined stop, automatically centring the filling needle. This ensures that the liquid is dispensed accurately inside the ampoule without wetting the neck or sealing area.
Does the Ampoule Filling Jig prevent product from wetting the ampoule neck?

Yes. The jig’s design ensures that each ampoule is perfectly centred beneath the filling needle, preventing any product from wetting the neck or sealing area. This results in clean, reliable seals and eliminates the risk of seal failure.
How compact is the Ampoule Filling Jig?

The jig measures just 210 x 105 x 345 mm, making it space-efficient and ideal for cleanrooms, laboratories or compact production areas where precision and hygiene are key.
Can the Ampoule Filling Jig be cleaned easily?

Absolutely. Its simple, open design allows for fast and thorough cleaning between batches, maintaining hygienic standards and reducing downtime.
