Adelphi Group

Response Benchtop Filler

Compact, high-accuracy benchtop liquid and cream filling machine designed for fast, hygienic and efficient small-batch production.

Product details

  • Fast, Precise & Versatile
    Deliver consistent, repeatable fills at high accuracy, helping reduce product waste and improve process efficiency across small-batch and laboratory production environments.
  • Wide Filling Range
    The Response Benchtop Filler can be supplied with three standard interchangeable pump sets, allowing accurate filling across a broad volume range to suit different container sizes and product types. Pump cylinders feature an electropolished finish for improved hygiene and cleanability.
  • Flexible Product Feed Options
    Liquid products can be drawn directly from bulk containers via a suction hose and non-return valve. Thicker products, creams and pastes are fed from a hopper system, with multiple hopper sizes available to suit production requirements.
  • Interchangeable Nozzle Solutions
    A wide range of nozzles is available to accommodate different product viscosities and container dimensions. Options include swage tip nozzles, cut-off nozzles with tip sealing, and full-bore cut-off nozzles in multiple sizes, supporting clean, drip-free filling.
  • Compact & Convenient Design
    With a small benchtop footprint, the Response Benchtop Filler is ideal for facilities where space is limited. It is well suited to laboratories, pilot plants, batch production runs, start-ups and growing manufacturers.
  • Quick-Strip for Rapid Cleaning
    The machine fully strips down in as little as three minutes, significantly reducing downtime between product changes and supporting high hygiene standards.
  • Product & Container Flexibility
    Designed to handle liquids, oils, gels, creams, pastes and products containing particulates. Suitable for filling bottles, jars, tubes, vials, pots and similar containers.
  • Safe, Reliable & Scalable
    Available with one or two filling heads and interchangeable nozzles. Systems can start as semi-automatic and be upgraded for automation, including integration of up to four benchtop fillers on the Response Automation Base or the addition of capping via the Response Monobloc Filler/Capper. The filler can also be automated into larger systems such as form-fill-seal machines.
  • ATEX Configuration Available
    An ATEX-compliant version is available for use with products that may generate explosive mists or vapours, supporting safe operation in hazardous environments.

Technical specifications

Specification Single Head Double Head
Typical Product OutputUp to 40 per min Up to 60 per min
Fill Volume Range4ml – 1000ml4ml – 100ml
Machine Height without hopper340 mm 340 mm
Machine Width343 mm343 mm
Machine Weight41kg44kg
Compress Air Consumption5L at 6 bar5L at 6 bar
Response Front On with Hopper 600 x 600
Response Without Hopper 600 x 600
Close Up Of Response 600 x 600
Person Filling Chilli Jam Birdseye View 600 x 600
Person Filling Chilli Jam Side On 600 x 600

Service & Maintenance

Hygienic, Pharmaceutical-Grade Construction

All product contact parts are manufactured from 316L stainless steel and virgin PTFE, with FDA-compliant materials used throughout. Standard sealing materials include FKM (Viton), with alternative seal options such as EPDM, silicone and FFKM available to suit specific product requirements.

Food-grade PVC suction hoses are used where applicable, and the machine’s quick-strip design allows fast, thorough cleaning to support strict hygiene protocols and minimise production downtime.

Why Choose Adelphi

  • Proudly Trusted Worldwide Since 1947

    With decades of experience and installations in over 100 countries, Adelphi is a trusted name.

  • End-to-End Project Management

    From concept to delivery, Adelphi provides complete project oversight. Ensuring a seamless operation.

  • Custom Solutions for Every Industry

    Whether you’re filling pharmaceuticals, cosmetics or food products, our products can be tailored to you.

  • British Manufacturing Excellence

    Our equipment upholds the highest standards of quality, craftsmanship & engineering integrity.

FAQ's

  • What is a Benchtop Filler?

    A benchtop filler is a compact liquid filling machine designed to sit on a workbench or small table. It provides precise, repeatable filling for liquids, creams, gels and other viscous products. Ideal for laboratories, start-ups and small to medium-scale production environments.

  • What products can the Response Benchtop Filler fill?

    What products can the Response Benchtop Filler fill?

    The Response Benchtop Filler can accurately fill a wide range of products, including:

    • Liquids, oils and serums
    • Creams, gels and lotions
    • Pastes and viscous products
    • Products with particulates (such as food sauces or cosmetic scrubs)

    It’s suitable for use with bottles, jars, tubes, vials, syringes, pots and more.

    Ask the Expert: Thick, High-Viscosity Products

  • How accurate is the Response Benchtop Filler?

    This machine guarantees industry-leading filling accuracy of ±0.25%, compared to approximately ±10% when filling by hand. This exceptional precision minimises product waste and improves profitability.

  • How long does it take to clean the machine?

    Thanks to its quick-strip design, the Response Benchtop Filler can be fully disassembled for cleaning in as little as 3 minutes. All 316L stainless steel and PTFE contact parts are hygienic, durable and easy to sterilise, making it ideal for regulated industries such as pharmaceutical, cosmetic and food production.

    Ask the Expert: How to Maintain Your Response Benchtop Filler

  • What materials is the machine made from?

    All product-contact parts are manufactured from 316L pharmaceutical grade stainless steel and PTFE, ensuring full FDA and GMP compliance. The monocoque stainless steel body design prevents contamination and simplifies cleaning.

Related case studies

Go to case studies
  • a product shot of the Response Benchtop Filler machine

    Eve Taylor (London) Ltd

    “Reliable, good solid pieces of equipment that have lasted.” Keep reading
  • a close up of a hand at a hand sanitiser bottle pump, with hand sanitiser coming out of the spout

    Connolly’s Red Mills

    “It’s a simple machine that does what it says it will.” Keep reading
  • an arm reaching down holding a flat clear container, to a nozzle on a Response Benchtop filler machine, which is filling the container with a cream colour liquid

    FARMERS’ Welsh Lavender Ltd

    “Outstandingly Efficient Customer Service and Support” Keep reading
  • a person with a blue protective overcoat, a hairnet and face mask sits in front of a Response Benchtop filler

    200% Increase in Product Offering for Veterinary Manufacturer

    “Adelphi’s knowledge of the technical aspects means they get what we need. Their experience marries with my ideas.” Keep reading

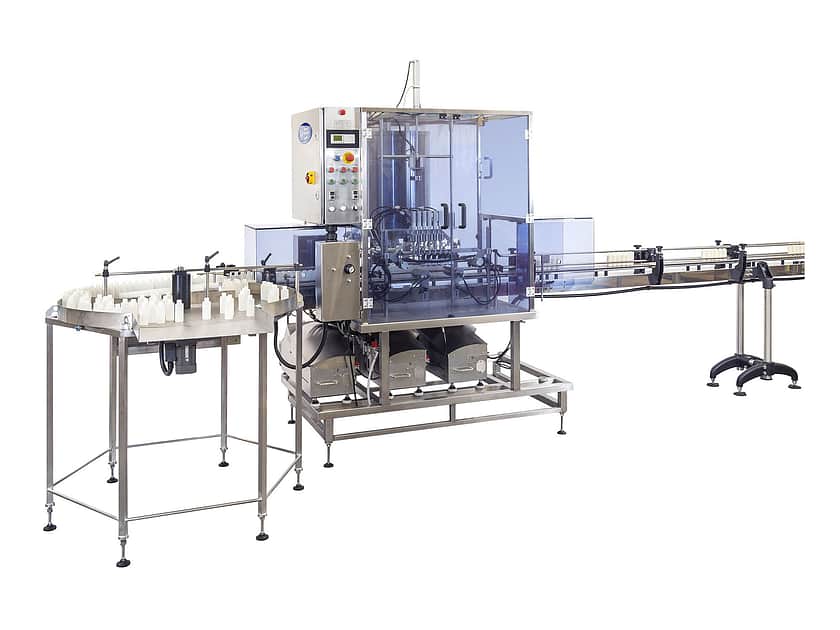

  • Tristel Solutions
